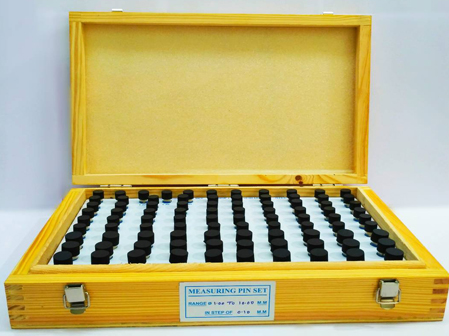

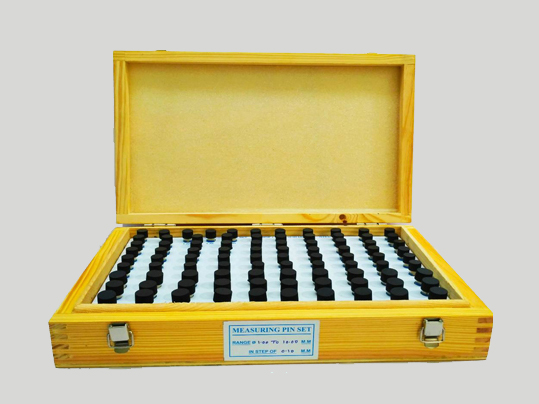

Measuring Pins set

Size Range:

  • Range Ø 0.20 mm to Ø 25.00 mm

    • Sets available in step of:

    0.100 mm 0.050 mm 0.020 mm 0.010 mm 0.005 mm 0.002 mm
  • Pin length 40 mm up to Ø 1.50 mm
  • Pin length 50 mm above Ø 1.50 mm

Technical Specification:

  • Accuracy with +/- 0.001 mm and +/- 0.002 mm
  • With Knob and Without Knob
  • Hardness: 58-60 HRC
  • Supply with plastic container

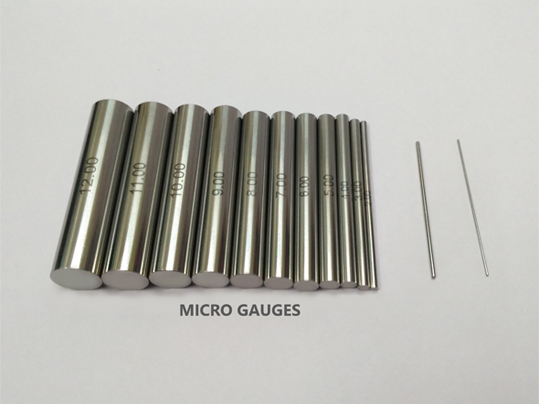

Measuring Pins loose

Size Range:

  • Range Ø 0.20 mm to Ø 100.00 mm
  • Pin length 40 mm upto Ø 1.50 mm
  • Pin length 50 mm above Ø 1.50 mm

Technical Specification:

  • Accuracy with +/- 0.001 mm and +/- 0.002 mm (also as per customer request)
  • With Knob and Without Knob
  • Hardness: 58-60 HRC
  • Available in any non-regular sizes (e.g. 0.210, 5.181, 27.9457, 63.00, etc…)

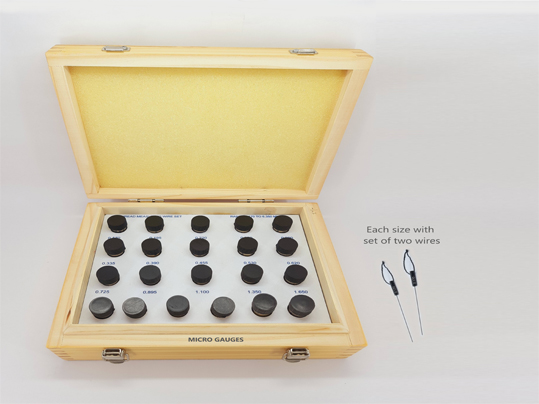

Thread Measuring Wires Set (Two Wires)

Size Range:

  • Range Ø 0.170 mm to Ø 6.350 mm
  • Pin length 40 mm up to Ø 1.50 mm
  • Pin length 50 mm above Ø 1.50 mm

Technical Specification:

  • Accuracy: Grade 0 / Grade 1 / Grade 2
  • With Knob
  • Hardness: 58-60 HRC

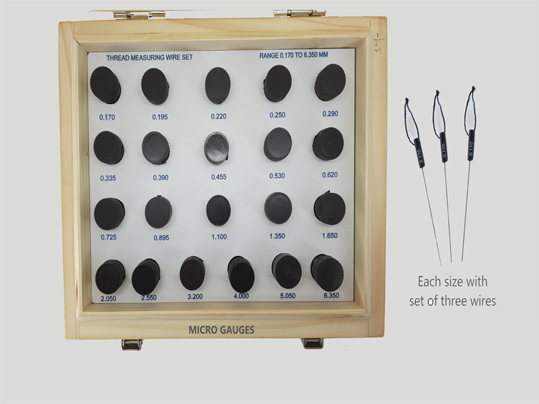

Thread Measuring Wires Set (Three Wires)

Size Range:

  • Range Ø 0.170 mm to Ø 6.350 mm
  • Pin length 40 mm upto Ø 1.50 mm
  • Pin length 50 mm above Ø 1.50 mm

Technical Specification:

  • Accuracy: Grade 0 / Grade 1 / Grade 2
  • With Knob
  • Hardness: 58-60 HRC

Thread Measuring Wires (Loose quantity)

Size Range:

  • Range Ø 0.170 mm to Ø 6.350 mm
  • Pin length 40 mm upto Ø 1.50 mm
  • Pin length 50 mm above Ø 1.50 mm

Technical Specification:

  • Accuracy: Grade 0 / Grade 1 / Grade 2
  • With Knob
  • Hardness: 58-60 HRC

Specially Designed Pins

Size Range:

  • Range Ø 1.00 mm to Ø 100.00 mm
  • Accuracy : +/- 0.001 mm and +/- 0.002 mm
  • With Knob and Without Knob
  • Length : As per customer drawing.
  • Hardness : 58-60 HRC
  • Design : as per customer drawing

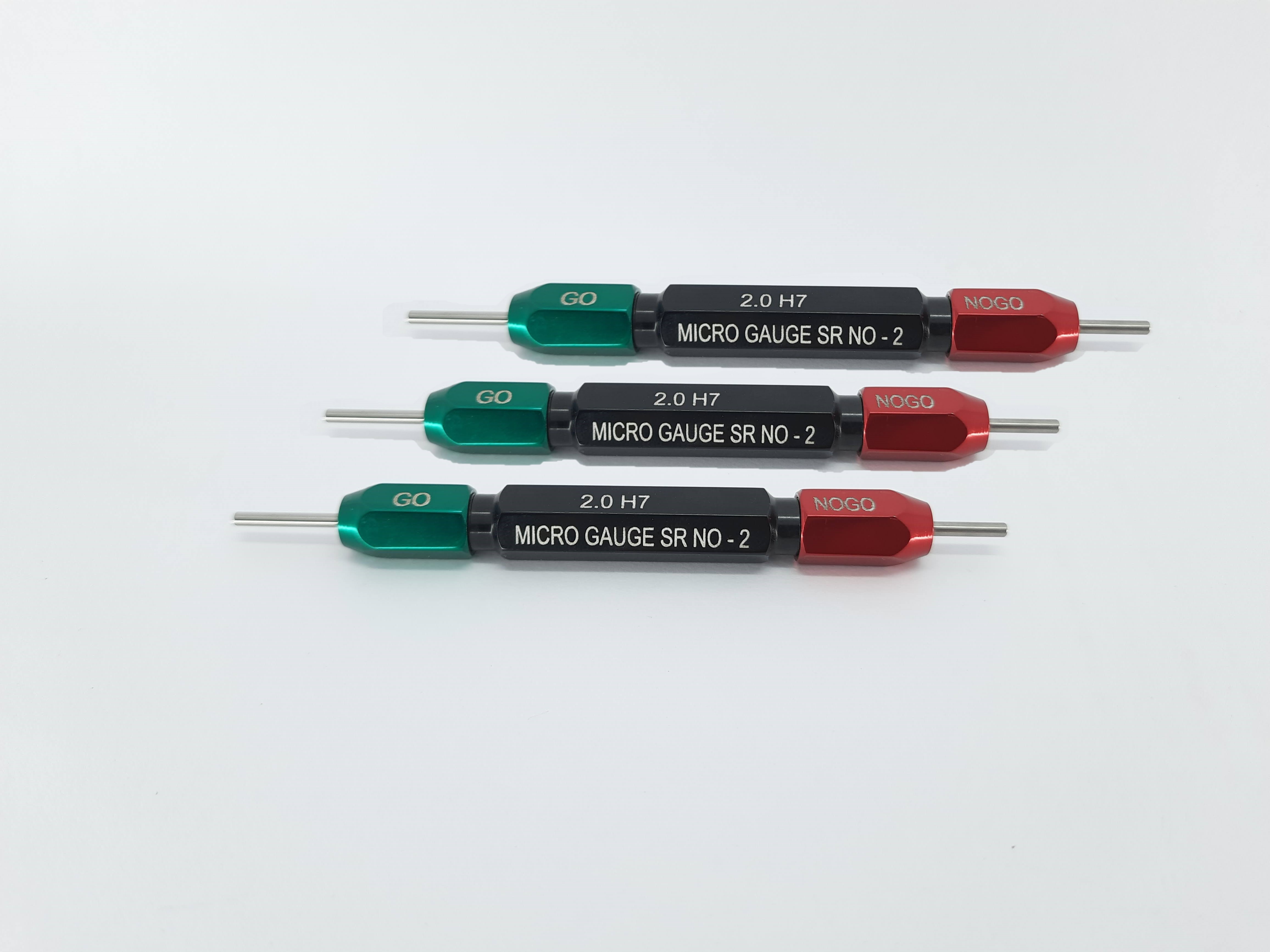

Reversible Plug Gauges (RPG)

Size Range:

  • Range above Ø 1.00 mm to Ø 100.00 mm

Technical Specification:

  • Material: Coated Al body with EN31 gauging end pins
  • Accuracy: as per customer drawing
  • Hardness: 58-60 HRC
  • Tolerance: as per customer drawing

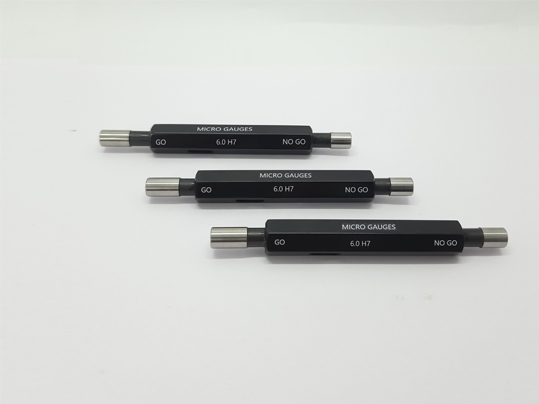

Plain Plug Gauges (PPG)

Size Range:

  • Range Ø 1.00 mm to Ø 100.00 mm

Technical Specification:

  • Accuracy: as per IS 7859-1975 and 3455-1971
  • Hardness: 58-62 HRC
  • Material: Coated Handle with OHNS gauging ends
  • Tolerance: as per customer specific size request

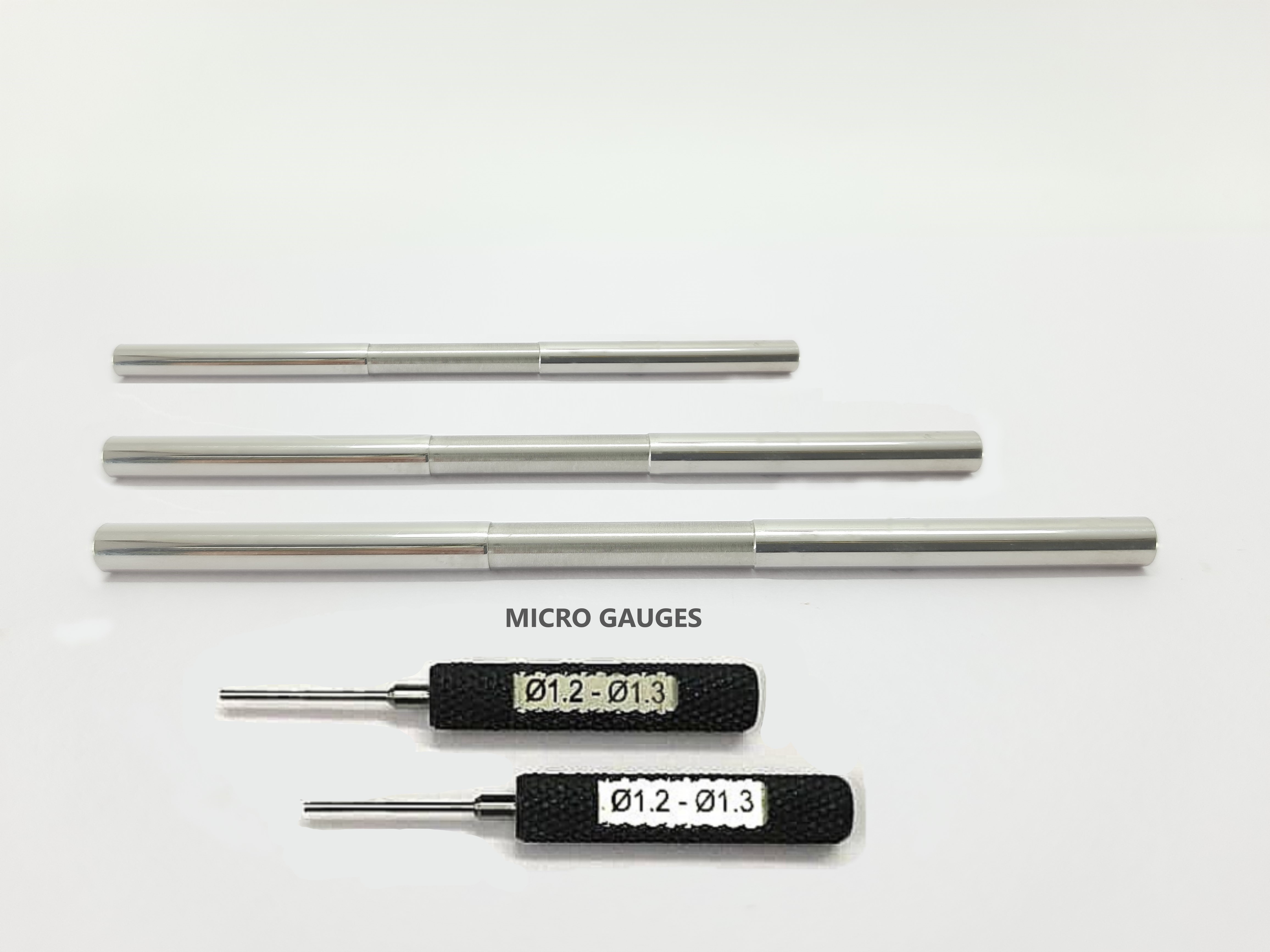

Step Pin Gauges

Size Range:

  • Range above Ø 1.00 mm to Ø 100.00 mm
  • Length and step: as per customer drawing
  • With handle without handle

Technical Specification:

  • Accuracy: as per customer drawing
  • Hardness: 58-62 HRC
  • Tolerance: as per customer drawing

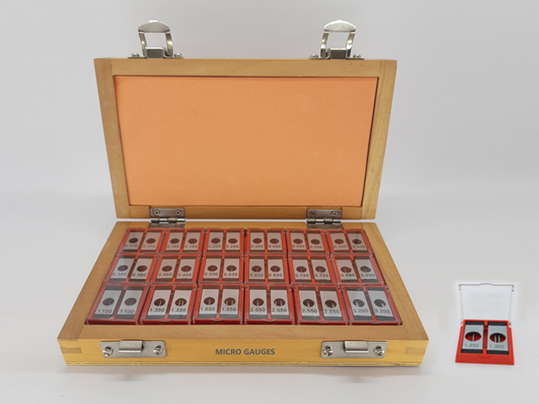

Three Wire Thread Measuring Unit Set

Size Range:

  • Std. Range Ø 0.170 mm to Ø 3.200 mm
  • Also as per customer specific range

Technical Specification:

  • Accuracy: as per IS 6311-1978
  • Hardness: 58-60 HRC
  • With 2 aluminium holders

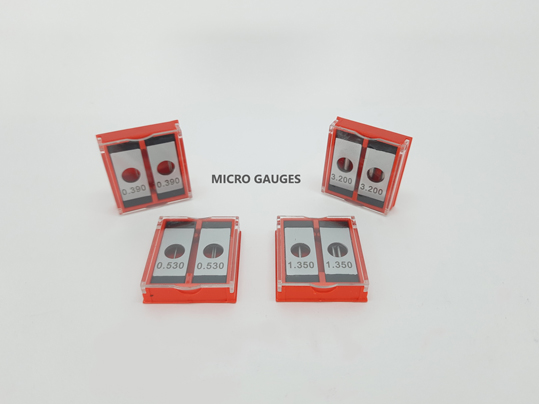

Three Wire Units(Loose quantity)

Size Range:

  • Std. Range Ø 0.170 mm to Ø 5.000 mm
  • Also, as per customer specific size

Technical Specification:

  • Accuracy: as per IS 6311-1978
  • Hardness: 58-60 HRC
  • With 2 aluminium holders

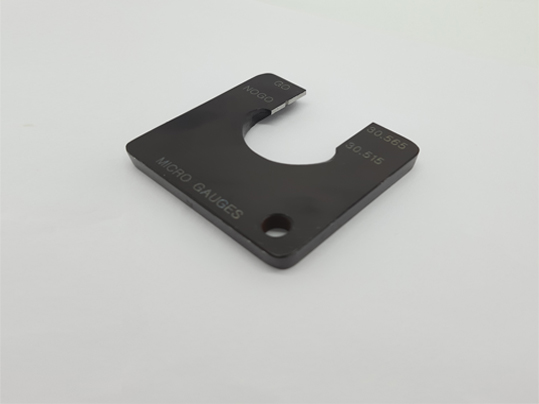

Fixed Snap Gauges

Size Range:

  • Range Ø 1.00 mm to Ø 300.00 mm
  • As per customer specific size request

Technical Specification:

  • Accuracy: as per IS 3455-1971
  • Hardness: 58-62 HRC
  • Material: OHNS

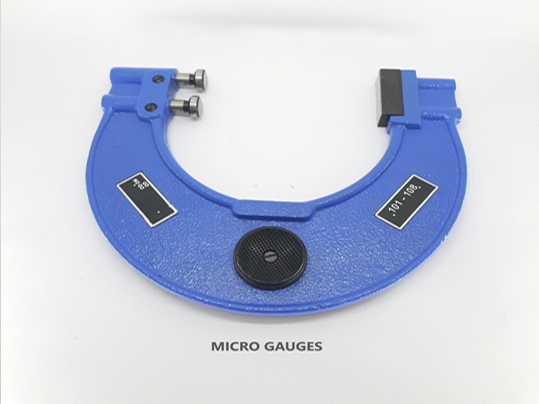

Adjustable Snap Gauges

Size Range:

  • Range Ø 1.00 mm to Ø 300.00 mm
  • Adjustable range: as per customer specific size request

Technical Specification:

  • Accuracy: as per IS 3455-1971
  • Hardness: 58-62 HRC
  • Material: CI Body with OHNS gauging surface

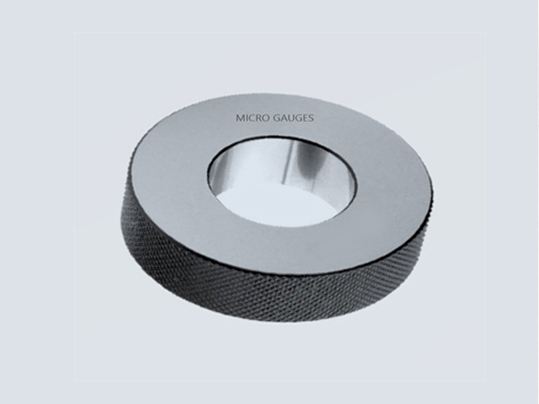

Ring Limit Gauges

Size Range:

  • Range above Ø 1.00 mm to Ø 300.00 mm

Technical Specification:

  • Accuracy: IS 3455
  • Hardness: 58-62 HRC
  • Tolerance: as per customer drawing

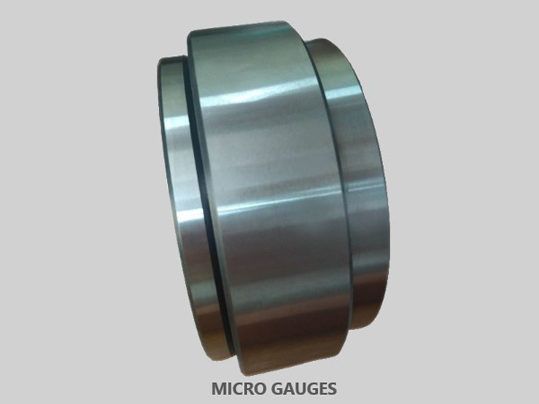

OD masters / Setting masters

Size Range:

  • Range Ø: as per customer drawing

Technical Specification:

  • Accuracy: as per customer drawing
  • Hardness: 58-60 HRC
  • Design: as per customer drawing

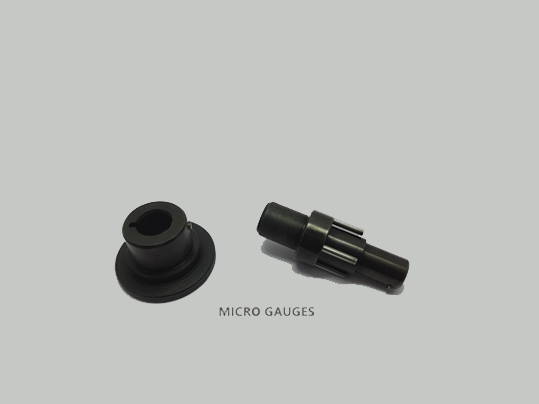

Relation Gauges

Size Range:

  • Design: as per customer drawing

Technical Specification:

  • Accuracy: as per customer drawing

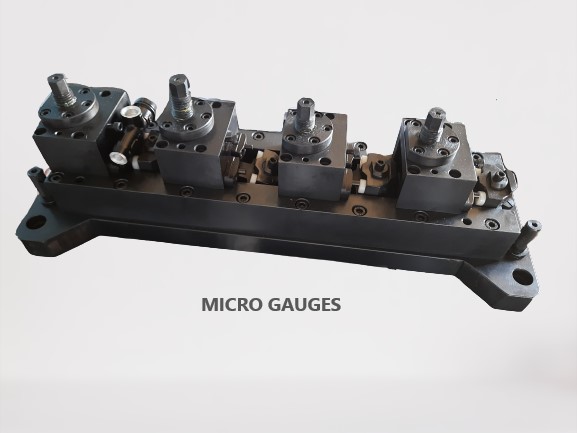

VMC Fixtures

Specification:

  • Hydraulic and Pneumatic fixtures
  • Design: as per customer drawing

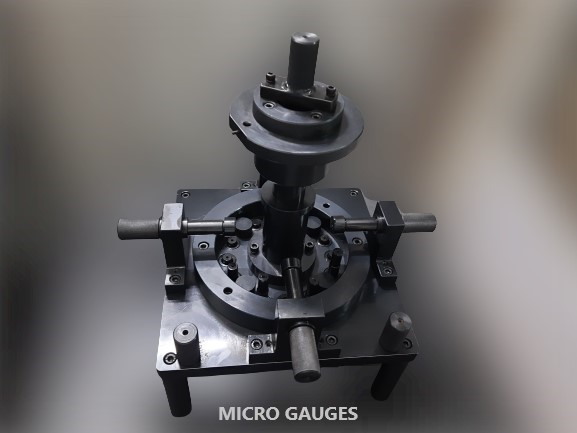

Positioning Fixtures

Specification:

  • Design: as per customer drawing

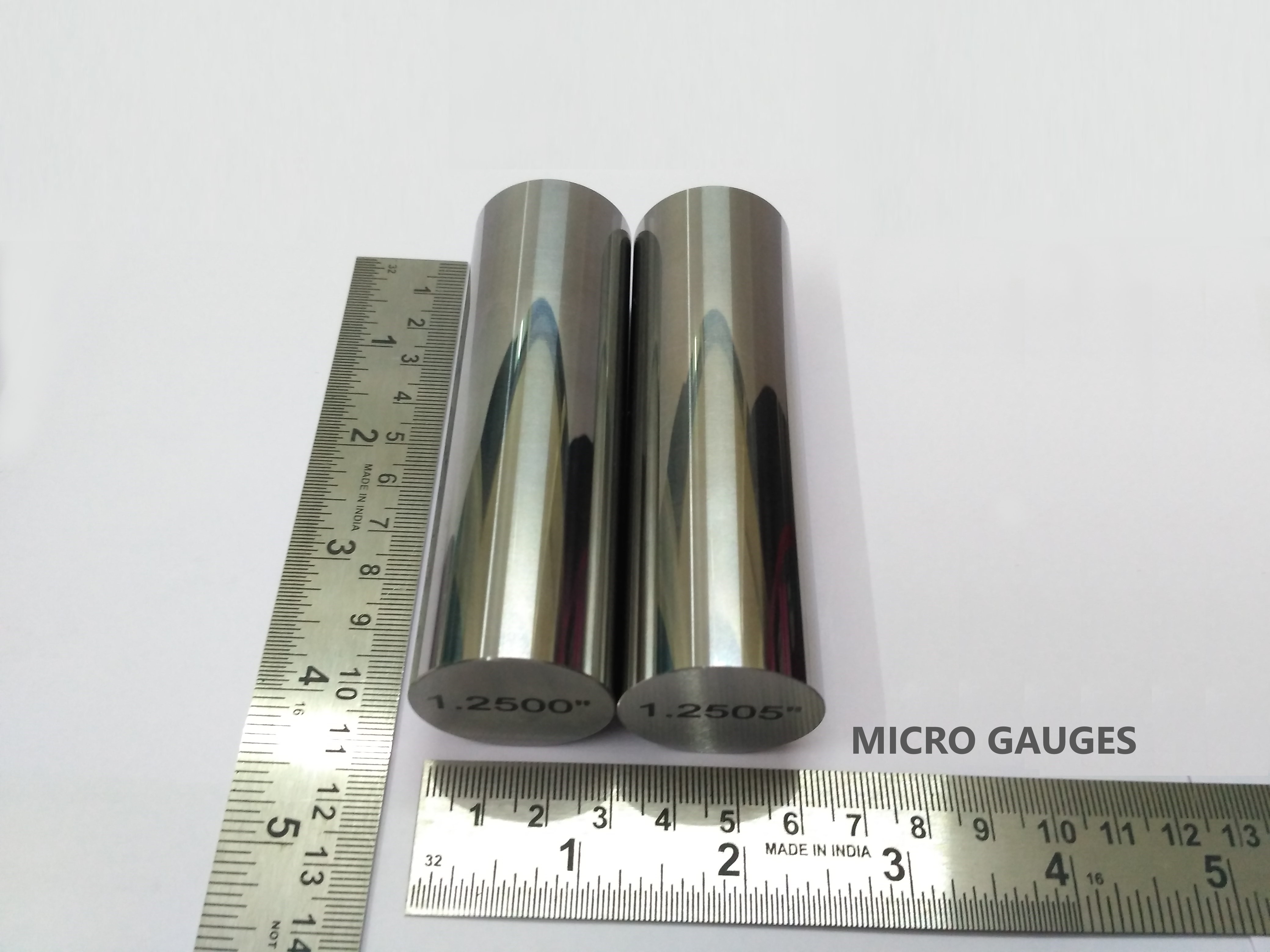

Centerless Lapping Services

  • We are providing centerless OD lapping services with our export quality setup
